In situ construction of heterojunctions to regulate the biodegradation behavior of copper carriers for tumor-specific cuproptosis-enhanced sono-immunotherapy

Journal of Nanobiotechnology volume 23, Article number: 246 (2025) Cite this article

Abstract

Cuproptosis, a novel approach utilizing copper carriers to trigger programmed cell death, exhibits promise for enhancing traditional therapies and activating robust adaptive immune responses. However, the uncontrolled release of Cu ions risks triggering cuproptosis in healthy tissues, potentially causing irreversible damage. To address this, we report on the use of a Cu-MOF (copper metal-organic framework) protective layer to regulate the biodegradation of copper-based nanomaterials. In situ formation of Cu-MOF on Cu2O nanocubes not only stabilizes the material under physiological conditions but also enhances its sonodynamic therapy (SDT) capabilities by establishing a Z-Scheme heterojunction. Upon SDT activation, the targeted Cu ion release at the tumor site triggers a cascade of reactions, generating reactive oxygen species (ROS) via Fenton-like processes and depleting glutathione (GSH). This ROS surge, combined with effective cuproptosis, modulates the immunosuppressive tumor microenvironment, inducing immunogenic cell death to eliminate primary tumors and inhibit metastasis. This study offers a new paradigm for the controlled integration of SDT, chemodynamic therapy (CDT), cuproptosis, and immunotherapy, achieving precise tumor-targeted treatment via controlled copper nanomaterial degradation.

Graphical abstract

Introduction

Recurrence and metastasis remain the leading causes of death among cancer patients, making cancer treatment a persistent medical challenge despite ongoing efforts to improve outcomes [1,2,3]. In contrast to radiotherapy and chemotherapy, which target and destroy cancer cells, immunotherapy works by stimulating the body’s immune system to eradicate tumors [4,5,6,7,8,9]. However, the tumor microenvironment (TME) has become the greatest obstacle to immunotherapy [10,11,12,13,14,15]. Cold tumors, unlike hot tumors, exhibit an immunosuppressive microenvironment. This environment is characterized by a deficiency of tumor antigens and minimal T-cell infiltration, which aids in immune evasion [16, 17]. To alleviate the constraints imposed by tumor complexity, heterogeneity, and the immunosuppressive TME on immunotherapy, it is crucial to create new types of tumor vaccines and the methods used to manufacture them need to be improved urgently.

The construction of in situ tumor vaccines through the induction of immunogenic cell death (ICD) has become a topic of great interest in recent times [18,19,20]. The hallmarks of ICD include the redistribution of cell surface molecules, the release of DAMPs, and the activation of immune cells [21,22,23]. Therefore, research and development of ICD-mediated tumor vaccines are of great significance for advancing immunotherapy [24, 25]. However, traditional treatment modalities primarily induce tumor cell apoptosis, and tumor cells have developed relatively sophisticated anti-apoptotic mechanisms through evolution [26, 27]. The level of tumor antigen release induced by apoptosis is limited, making it difficult to establish a lasting and effective tumor vaccine [28]. Recently, new modes of programmed cell death have been discovered, including ferroptosis, cuproptosis, and necroptosis [29,30,31]. Unlike apoptosis, ferroptosis, cuproptosis, and necroptosis are intrinsically inflammatory and immunogenic forms of cell death. Thus, exploring the induction methods and effective strategies for new death modes like cuproptosis offers new avenues for constructing ICD-induced tumor vaccines.

Cuproptosis is a unique mechanism of cell death that is copper-dependent, as an abundance of copper ions can prompt cell death by binding to lipoylated proteins [30,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34]. Analysis of the mechanisms behind cuproptosis reveals that enhancing the copper ion level in tumor cells is a key factor affecting the efficacy of tumor therapy [35, 36]. To enhance therapeutic effectiveness, frequent dosing is often required to increase the enrichment of copper ions in tumors. However, cuproptosis-mediated tumor therapy lacks high selectivity or intelligence; the accumulation of Cu ions in normal tissues inevitably poses potential safety risks [37]. Therefore, the rational design of a TME-responsive nanoplatform as a copper ion carrier is crucial for achieving tumor-specific cuproptosis [38, 39]. Moreover, the presence of copper ions in the tumor microenvironment can interfere with the binding of these ions to the lipoylated molecules in the TCA cycle due to the abundance of GSH, potentially diminishing the efficacy of copper-induced toxicity [40, 41]. Thus, on the foundation of achieving tumor-specific cuproptosis, consuming GSH through the modulation of the TME should be overcome to further enhance the cuproptosis effect. To achieve both cuproptosis and GSH depletion, various copper-based nanomaterials with multivalent metal ions have been employed for TME-regulation enhanced cuproptosis and CDT [42,43,44]. However, the biodegradability characteristics of these copper-based nanomaterials are difficult to control; non-specific degradation cannot achieve tumor-specific cuproptosis, and non-degradable properties greatly limit the therapeutic efficiency of cuproptosis. Consequently, the proper management of the degradation rate of copper carriers is a critical factor in enhancing the effects of cuproptosis, TME regulation, and CDT.

On the other hand, cancer therapies that utilize ROS, such as radiotherapy, photodynamic, and sonodynamic therapy, have the potential to induce ICD effects as well [45,46,47,48,49,50,51]. However, as a non-invasive treatment, radiotherapy can treat deep-seated tumors but is associated with significant toxicity, strong side effects, and long treatment cycles [6]. PDT is a minimally invasive treatment that causes less damage to surrounding normal tissues, but its light sources have limited tissue penetration, potentially affecting the treatment of deeper tumors [52, 53]. SDT combines the advantages of PDT and radiotherapy, using ultrasound (US) with deeper penetration depth to activate sonosensitizers [54,55,56]. Nonetheless, the ability of SDT-induced ICD is greatly hampered by the insufficient generation of ROS as a result of the low efficacy of sonosensitizers and the complicated TME [7, 57], Traditional organic sonosensitizers suffer from poor stability, potential phototoxicity, unstable chemical properties, and inorganic nanomaterials often have wide bandgaps and rapid electron-hole pair recombination, leading to low ROS production rates [58]. Researchers have been investigating the creation of heterojunctions with aligned bandgaps in order to prevent electron-hole pair recombination [59, 60]. Building on this foundation, the development of heterojunction sonosensitizers utilizing copper-based nanomaterials shows potential in regulating the degradation characteristics of copper carriers.

Compared with other Cu-based nanomaterials, such as CuO, CuS, and CuFe2O4, Cu2O possesses good sonodynamic and Fenton-like reaction activities owing to the narrow bandgap and the presence of Cu+ [61]. In addition, Cu2O holds promise as a copper carrier for cuproptosis, primarily because of its easily degradable nature [42, 62, 63]. Despite being within normal physiological conditions, Cu2O degradation can still trigger cuproptosis in healthy cells, ultimately causing irreversible harm to normal tissues. In this work, to control the degradation rate of Cu2O nanocubes, we utilize Cu-MOF formed in-situ as a protection layer to load in Cu2O to form a Z-scheme heterojunction. The CMC fabricated in-situ not only show improved sonodynamic activity, but also demonstrate controllable degradation behaviors, which are resistant to degradation under normal physiological conditions but can selectively degrade and release copper ions in TME. By releasing Cu+ and Cu2+ specifically in tumors, a cascading amplification of ROS production is achieved. Additionally, the relevance lies in the release of Cu+, which triggers tumor-specific cuproptosis by stimulating DLAT oligomerization. Due to these favorable properties, CMC heterojunctions significantly enhance a potent ICD effect by boosting ROS levels and inducing tumor-specific cuproptosis (Scheme 1). As a result, primary tumors are completely eliminated, and distant tumors are almost fully suppressed. The exploration of novel therapeutic approaches such as cuproptosis, SDT, CDT, and immunotherapy not only enriches our understanding of cell death mechanisms but also provides new insights for cancer therapy, paving the way for cancer treatment with lower side effects and higher efficiency.

Scheme 1
scheme 1

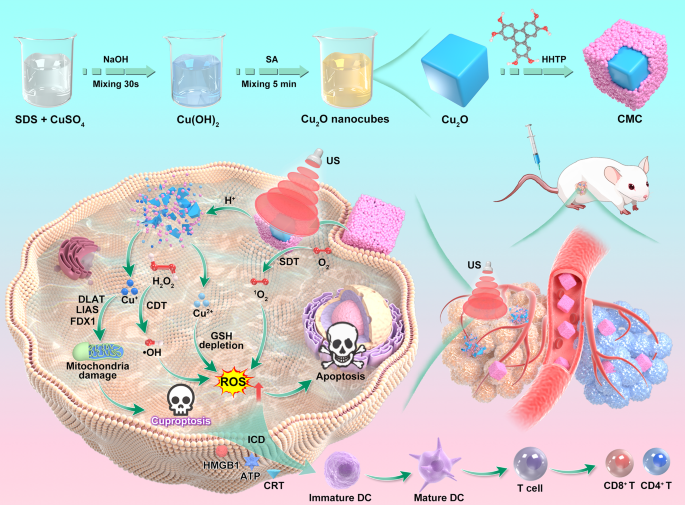

A scheme to show the preparation of CMC heterojunctions for tumor-specific cuproptosis-enhanced SDT/CDT/immunotherapy

Full size image

Results and discussion

Synthesis and structural characterization of CMC

We synthesized Cu2O nanocubes through the mild precipitation method. A reaction took place when copper sulfate was combined with NaOH in the presence of SDS to form Cu(OH)2, which was subsequently reduced to Cu+ by sodium ascorbate (SA) under room temperature stirring. TEM image revealed regular cubic structures of Cu2O with a size of about 90 nm (Fig. 1a), similar to the hydrodynamic diameter (112.4 nm) determined by DLS measurements (Fig. 1f). To overcome the susceptibility of Cu2O nanoparticles to oxidation in practical applications, we combined Cu2O with 2,3,6,7,10,11-hexahydroxytriphenylene (HHTP) to prepare CMC nanoparticles. TEM images clearly show a distinct core-shell structure formed on the cubic structure of Cu2O (Fig. 1b), uniformly wrapped by a layer of material about 20 nm thick, with the size of CMC about 130 nm. The hydrodynamic diameter increased from 112.4 nm for Cu2O to 168.5 nm for CMC (Fig. 1f), similar to the TEM observations, slightly larger than the diameter of the Cu2O nanocubes. TEM image also demonstrated that the surface coating of Cu-MOF does not affect the original surface morphology of the Cu2O nanocubes. Furthermore, the mapping of CMC at high magnification were obtained by element mapping to characterize the dispersion of the element distribution of CMC, as shown in Fig. S1, the elements of Cu, O, C and N are successfully distributed in CMC. Figure 1c shows the colors of Cu2O and CMC at the same concentration, with Cu2O appearing yellow and CMC dark green, which also confirmed the successful preparation of heterojunctions. Figure 1d illustrates that Cu2O has a distinct absorption peak at 496 nm, which can also be detected in that of CMC. Furthermore, the absorption intensity of CMC is significantly higher than that of Cu2O at the same concentration (200 µg/mL). Zeta potential measurements for Cu2O and CMC were 23.1 ± 1.8 and 39.3 ± 3.07 mV, respectively (Fig. 1e).

Fig. 1
figure 1

Characterization of CMC. (a, b) TEM images of Cu2O and CMC. (c) Photographic images displaying the colors of Cu2O (yellow) and CMC (dark green) at the same concentration. (d-f) UV-visible absorption spectra, Zeta potential (n = 3), and hydrodynamic diameters of Cu2O and CMC (n = 3). (g, h) XRD spectra of Cu2O and CMC. (i-p) XPS spectra of Cu2O and CMC, including measurements of survey XPS, high-resolution C 1s, Cu 2p, and O 1s spectra

Full size image

Next, the chemical composition of Cu2O and CMC was studied through a series of characterizations such as XRD and XPS. The successful synthesis of Cu2O and CMC was confirmed by their XRD patterns (Fig. 1g, h), which correspond to the Cu2O nanostructure (PDF#99 − 0041). In the XRD spectrum of Cu2O, distinct diffraction peaks are observed at ~ 29.5°, ~ 36.4°, ~ 42.3°, ~ 61.4°, and ~ 73.6°, corresponding to the (110), (111), (200), (220), (220), and (311) crystal planes of Cu2O, respectively. Notably, no impurity peaks were observed, indicating that the synthesized Cu2O possesses good crystalline and purity. For CMC, the characteristic diffraction peaks of Cu2O are clear, but there are no distinct Cu-MOF diffraction peaks, and the corresponding XRD diffraction peaks are weaker compared to Cu2O. This weakening could be due to the low intensity of Cu-MOF’s diffraction peaks and the fact that Cu-MOF encapsulation diminishes the intensity of Cu2O’s diffraction peaks. XPS was utilized to analyze the valence states and composition of the different samples (Fig. 1i, m). The Cu2O’s peaks in high-resolution Cu 2p spectrum at ~ 931.9, ~ 933.9, ~ 951.8, and ~ 953.9 eV was observed (Fig. 1k). The results for CMC are similar to those of Cu2O, with peaks at ~ 932.0, ~ 932.7, ~ 951.8, and ~ 953.6 eV (Fig. 1o). Moreover, the ratio of Cu+ to Cu2+ in CMC is much higher than in Cu2O, with a ratio of 10.11 compared to only 3.85 in Cu2O, indicating that the encapsulation by Cu-MOF reduces the loss of Cu+ and enhances the stability of Cu2O nanocubes. Both CMC and Cu2O exhibit characteristic C peaks of C-C and C-OH in their high-resolution C 1s spectra (Fig. 1j, n), and typical features of O-H and Cu-O in their high-resolution O 1s spectra (Fig. 1l, p). These above structural characterization results clearly demonstrate the successful preparation of Cu2O nanocubes and CMC heterojunctions.

Fig. 2
figure 2

Heterojunction-enhanced SDT and CDT performances. (a, b) Evaluation of 1O2 generation efficiency of Cu2O and CMC under US irradiation. (c) Comparison of the rate constants for 1O2 generation triggered by US in the presence of Cu2O and CMC (n = 3). (d-g) Tauc plots and XPS-VB spectra of Cu2O and CMC. (h) Energy band diagrams of Cu2O and CMC. (i, j) Generation of •OH by Cu2O and CMC at pH 4.5. (k) Comparison of the chemodynamic effects of Cu2O and CMC at pH 4.5 (n = 3). (l, m) Generation of •OH by Cu2O and CMC in the presence of hydrogen peroxide at pH 6.0. (n) Comparison of the chemodynamic effects of Cu2O and CMC at pH 6.0 (n = 3). (o, p) Evaluation of GSH depletion by Cu2O and CMC. The concentration of Cu2O and CMC was 200 µg/mL

Full size image

Heterojunction-enhanced SDT and CDT performances

Following the successful construction of heterojunctions, we used DPBF as a ROS probe to assess the enhanced sonodynamic characteristics of CMC. As shown in Fig. 2a, b, with the increase in US time (0–10 min), the absorption of DPBF at 418 nm rapidly decreased, indicating significant ROS generation. Under the same conditions, the rate of ROS generation was stronger in the CMC group compared to the single-component Cu2O group. Specifically, the rate of ROS generation under CMC was 0.15 min− 1, 1.5 times that of Cu2O (0.1 min− 1) (Fig. 2c), which robustly validates the superior sonodynamic performance of CMC over pure Cu2O. The exceptional rate of ROS generation by CMC suggests that the construction of the heterojunction significantly enhances the SDT performance of Cu2O nanocubes. Since DPBF can detect both 1O2 and O2ˉ•, we used dihydrorhodamine 123 (DHR123) to monitor the O2ˉ• production capacity of Cu2O and CMC under US irradiation. The significantly increased fluorescence intensity of DHR123 was observed in Cu2O and CMC groups under US irradiation (Fig. S2), suggesting their efficient O2ˉ• generation ability. In addition to O2ˉ•, the generation of 1O2 by CMC under US irradiation was confirmed by the ESR spectra. As shown in Fig. S3, both Cu2O and CMC exhibited the significant ESR signal, indicating the generation of 1O2. Therefore, CMC-mediated ROS generation involves both energy transfer and electron transfer processes, producing 1O2 and O2ˉ• simultaneously.

Next, by analyzing the bandgap structures of Cu2O and Cu-MOF, we explored the mechanism behind the enhanced sonodynamic activity of CMC. Initially, the valence bands (VB) of Cu2O and Cu-MOF were determined using XPS-VB spectroscopy, which were found to be 0.44 eV and 1.46 eV respectively (Fig. 2f, g). Subsequently, the corresponding standard hydrogen electrode (EVB, NHE) values were calculated. The EVB, NHE for Cu2O and Cu-MOF were calculated as 0.44 eV and 1.46 eV, respectively. The bandgaps (EBG) of Cu2O and Cu-MOF were obtained from Tauc plots derived from UV-vis spectroscopy, which determined the bandgaps to be 1.58 eV and 1.81 eV, respectively (Fig. 2d, e). Based on EVB = ECB + EBG, the conduction bands (CBs) of Cu2O and Cu-MOF were calculated as -1.14 eV and − 0.35 eV, respectively. From these measurements, we plotted the energy band diagrams of Cu2O and Cu-MOF (Fig. 2h). Therefore, the electron transfer occurs from the conduction band of Cu-MOF to the valence band of Cu2O. CMC’s enhanced sonodynamic performance is likely attributed to the development of a Z-type heterojunction, which hinders the recombination of electron-hole pairs within the separate semiconductors. Therefore, the improved sonodynamic performance of the CMC heterostructure can be attributed to its efficient electron-hole separation efficiency.

Due to the rich presence of Cu+ in CMC, we then measured its chemodynamic performance under different pH using TMB as a probe. By monitoring changes in absorbance at 652 nm, the capacity of CMC and Cu2O to generate •OH was assessed. At a low pH of 4.5, the absorption peaks at 652 nm for both Cu2O and CMC increased with the concentration of hydrogen peroxide (Fig. 2i, j). CMC demonstrated significantly higher •OH generation efficiency compared to Cu2O, with a rate of 1.09 min− 1 (Fig. 2k) versus 0.33 min− 1 for Cu2O. The enhanced CDT performance can be attributed to accelerated electron transfer processes within the CMC heterostructure. At pH 6.0, the CDT properties of CMC were also studied (Fig. 2l-n), where CMC still showed a higher •OH generation rate (0.27 min− 1) compared to Cu2O (0.24 min− 1). We also calculated the Vmax and Km of Cu2O and CMC using Michaelis-Menten kinetic analysis. As depicted in Fig. S4, the higher Vmax and the lower Km can be detected in the CMC group compared with that in the Cu2O group at pH 4.5 and 6.0, indicating the higher chemodynamic activity of CMC. However, the •OH generation rates for both CMC and Cu2O decreased compared to those at pH 4.5. Importantly, at pH 7.4, Cu2O still showed Fenton-like reaction activity and •OH production ability (Fig. S5a), indicating that Cu2O could be degraded under normal physiological conditions to release Cu+ for triggering CDT effect. For comparison, almost no •OH generation was observed for CMC at pH 7.4 (Fig. S5b), suggesting that the coating of Cu-MOF could regulate the degradation behaviors of Cu2O nanocubes to avoid the CDT in normal cells.

To verify that the composite material we constructed has excellent SDT and CDT properties because of the formation of a heterojunction, rather than simply mixing the two materials. We prepared a physical mixture of Cu2O and Cu-MOF, which was then compared with CMC. As depicted in Fig. S6, the 1O2 and •OH generation efficiency of CMC was significantly higher than the physical mixture of Cu2O and Cu-MOF. These results forcefully demonstrated that the enhanced SDT/CDT performance of CMC could be ascribed to the formation of Z-scheme heterojunctions rather than the physical mixture of Cu2O and Cu-MOF.

Given the abundance of GSH in the TME, the ROS (1O2 and •OH) created by the SDT-CDT combination could be counteracted by GSH, thus decreasing the therapeutic impact of SDT and CDT. Given the presence of Cu2+ in CMC, we further assessed its capacity for GSH depletion. Using DTNB as a probe, the reaction between CMC and GSH was monitored. As shown in Fig. 2p, o, the absorption peak at 412 nm for CMC or Cu2O alone decreased sharply within 12 h, indicating a strong GSH depletion capability. By significantly enhancing GSH depletion, CMC successfully tackled GSH-mediated resistance in the tumor microenvironment, ultimately boosting the therapeutic impact of CDT-SDT in tumor treatment.

Fig. 3
figure 3

pH-responsive biodegradation behavior of CMC. (a-d) Morphological changes in CMC and Cu2O with extended exposure time at pH 6.0. (e, f) UV-vis absorption spectra of Cu2O and CMC at pH 6.0 after incubation of different times. (g-j) Evaluation of 1O2 generation capability of Cu2O and CMC at pH 6.0 after incubation of different times. (k, l) XRD patterns of Cu2O and CMC after degradation at pH 6.0 for different times. (m-p) The survey XPS and high-resolution Cu 2p spectra of Cu2O and CMC after degradation at pH 6.0 for different times

Full size image

pH-responsive biodegradation behavior of CMC

After demonstrating the heterojunction-enhanced SDT and CDT performances of CMC, we then studied their biodegradability through dialysis. During dialysis, degradation of Cu2O was observed as early as 20 min (Fig. S7a), with rapid degradation progressing to a translucent light yellow by 40 min. And it approaches a nearly transparent colorless state by 90 min. CMC, however, remained stable during the first two days, potentially providing a stable window for SDT (Fig. S7b). After two days, the composite material began to degrade, turning from dark green to dark blue by the third day, likely due to the degradation of the Cu2O encapsulated within CMC. By the fifth day, CMC had turned to a translucent blue. UV-vis absorption spectra at various time points, as shown in Fig. 3e, f, further indicate that the absorption of Cu2O and CMC gradually decreased with the duration of dialysis, and the corresponding absorption curves tended to flatten by the end of dialysis.

For a more comprehensive view of the degradation process of CMC, TEM images were acquired on 1, 3, and 5 days (Fig. 3b-d). On the first day, the morphology of CMC remained unchanged, by the third day, CMC showed overall aggregation, but separation between Cu-MOF and Cu2O began to occur. On the fifth day, Cu2O was almost completely invisible. TEM images were also obtained for Cu2O during corresponding stages of degradation (20, 40, 90 min) (Fig. 3a and S8), where by 40 min Cu2O had diminished in size and showed significant aggregation, unable to maintain its stable cubic structure, and by 90 min it was almost completely degraded. These results demonstrate that the coating of Cu-MOF on the surface of Cu2O could mitigate the degradation process of Cu2O under the acidic conditions.

We then evaluated the sonodynamic performance of CMC during its degradation. The presence of Cu-MOF plays a crucial role in enhancing SDT performance, allowing CMC to remain stable for a certain period. One day after dialysis began, it still demonstrated good 1O2 generation capabilities of CMC (Fig. 3i), whereas Cu2O showed significantly reduced 1O2 generating ability just 20 min into dialysis (Fig. 3g). By the end of the dialysis process for both Cu2O and CMC, there was no remaining SDT activity (Fig. 3h, j). These results demonstrate that CMC significantly improves the stability of Cu2O nanocubes and confirm that the ROS generation function activated by US through CMC can be sustained within a stable one-day window.

The structural characterization of CMC and Cu2O was performed to unveil their degradation mechanism including XRD patterns and XPS spectra. The XRD patterns of Cu2O and CMC at their respective dialysis points were measured. The diffraction peaks for Cu2O after 90 min of dialysis and for CMC after five days of dialysis were weakened or almost disappeared (Fig. 3k, l). Furthermore, high-resolution Cu 2p XPS spectra were measured to detect changes in the Cu+/Cu2+ ratio after 90 min of dialysis for Cu2O and five days for CMC (Fig. 3m-p). The Cu+/Cu2+ ratio for Cu2O decreased from 3.85 to 0.54 after 90 min of dialysis, and for CMC it dropped from 10.11 to 0.06 after five days, indicating that nearly all Cu+ in Cu2O and CMC had been oxidized to Cu2+. These results indicate that the degradation mechanism of CMC and Cu2O was ascribed to the oxidation of Cu+ to Cu2+.

Similar to pH 6.0, the noticeably lightened color of Cu2O solution can be detected after 4 h at pH 7.4 (Fig. S9a), suggesting that Cu2O can deteriorate in the acidic and normal physiological condition. After Cu-MOF coating, insignificant change of the absorption spectrum of CMC heterojunctions can be detected after storing for 5 days at pH 7.4 (Fig. S9d), illustrating that CMC cannot be degraded in normal physiological conditions. Furthermore, as presented in Fig. S9b, no obvious color change can be observed in CMC solution after storing for 5 days at pH 7.4. This not only limits its ability to successfully conduct SDT/CDT, but also brings about harmful consequences on normal tissues. The Cu-MOF coating functions as a protective barrier, stopping the non-specific degradation of Cu2O nanocubes on normal tissues and enabling the specific induction of cuproptosis and CDT in tumors.

Fig. 4
figure 4

In vitro antitumor efficacy of CMC. (a-d) The relative cell viability of 4T1 cells is assessed after incubation with Cu2O and CMC, with or without US irradiation. (e, f) Following different treatments, live/dead cell and ROS staining of 4T1 cells was carried out. Data are presented as the mean ± SD (n = 6 and *p < 0.05, ***p < 0.001)

Full size image

In vitro antitumor efficacy of CMC

After confirming the enhanced sonodynamic and chemodynamic properties of CMC, we investigated its synergistic tumor treatment effects at the cellular level. Initially, we used confocal imaging microscopy to study the uptake behavior of CMC and Cu2O in 4T1 cells. Cu2O and CMC were labeled with FITC fluorescent dyes to evaluate their cellular uptake. The fluorescence imaging showed bright green fluorescence in the cytoplasm of 4T1 cells, indicating effective intracellular uptake of Cu2O and CMC (Fig. S10). Next, we assessed the biocompatibility of CMC and Cu2O. As shown in Fig. S11, LO2 cells treated with different concentrations of Cu2O for 24–48 h exhibited significant cytotoxicity, indicating that Cu2O can degrade in the normal physiological conditions to release Cu+. Conversely, CMC did not exhibit any notable cytotoxicity towards LO2 cells, as shown in Fig. S12. This indicates that the Cu-MOF coating effectively protects Cu2O nanocubes from degradation in normal cells. The CCK-8 results presented in Fig. 4a-d showed the cell viability of 4T1 cells after different treatments for 24 and 48 h. Compared with the single-component Cu2O nanocubes, CMC exhibited higher cytotoxicity against 4T1 cells at the same conditions, which could be ascribed to the stronger chemodynamic activity of heterojunctions. Moreover, the severe cell death phenomenon of 4T1 cells treated with CMC in the presence of US irradiation was observed (Fig. 4d). The cytotoxicity of CMC + US against 4T1 cells was much higher than that of the single-component Cu2O nanocubes (Fig. 4c).

The superior therapeutic effect of CMC through SDT and CDT was further evaluated using live/dead cell staining. As shown in Fig. 4e, no red fluorescence signals were detected in the control and US alone groups, indicating that US (50 kHz, 1.0 Wcm− 2) alone does not have significant cytotoxicity. Both Cu2O and CMC alone groups showed decreased green fluorescence signals and increased red fluorescence signals, verifying their good chemodynamic effects. Furthermore, the red fluorescence intensity in the CMC group was higher than that in the Cu2O alone group (Fig. S13a), confirming the enhanced chemodynamic activity of heterojunctions. The CMC + US group exhibited significantly higher red fluorescence signals than the Cu2O + US group, demonstrating the synergistic enhancement between CDT and SDT. These results clearly indicated that the construction of CMC heterojunctions greatly improved the efficiency of SDT and CDT treatment through Cu2O alone.

We then investigated the antitumor mechanism of CMC-mediated SDT and CDT. The intracellular ROS levels induced by CMC + US were determined using DCFH-DA as the ROS probe. There were no significant ROS fluorescence signals in the control and US alone groups of 4T1 cells (Fig. 4f), suggesting that the US alone could not generate ROS to induce apoptosis. In contrast, the CMC alone and Cu2O alone groups exhibited a bright ROS fluorescence signal, confirming the enhanced intracellular ROS generation by CMC and Cu2O. Notably, the highest ROS signal can be detected in the CMC + US group (Fig. S13b), demonstrating the high-efficiency sonodynamic and chemodynamic activities of heterojunctions.

Fig. 5
figure 5

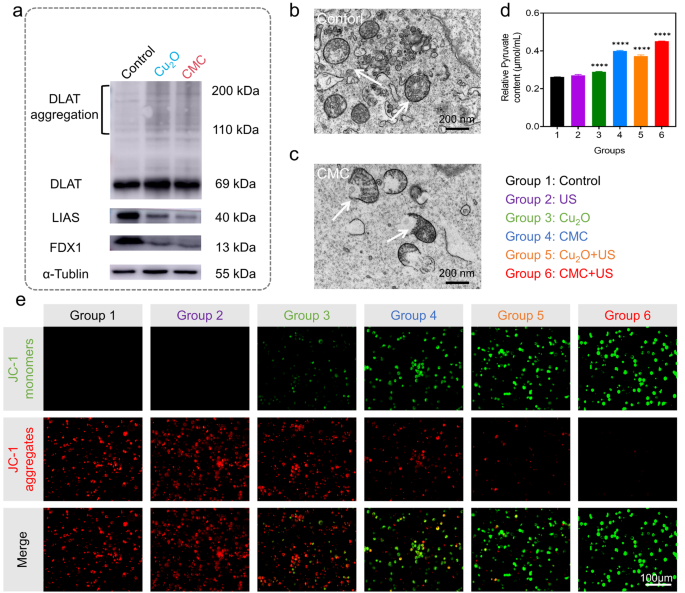

In vitro antitumor mechanism of CMC. (a) Evaluation of DLAT, LIAS, and FDX1 expression in 4T1 cells after different treatments. (b, c) TEM observations of mitochondrial morphological changes after different treatments. (d) Pyruvate content in 4T1 cells after different treatments. (e) Fluorescence imaging of mitochondrial membrane potential in 4T1 cells. (n = 3 and ****p < 0.0001)

Full size image

In vitro antitumor mechanism of CMC

In addition to ROS-mediated antitumor mechanism, we then investigated the cuproptosis-mediated antitumor mechanism owing to the presence of Cu+ in CMC. Cuproptosis is known to be especially potent against cancer cells that have strong mitochondrial respiration, such as 4T1 cells [62]. Consequently, we opted for 4T1 cells as the subject of our study to assess the impact of CMC on the cuproptosis pathway. As presented in Fig. 5a, both Cu2O and CMC treatments led to significant oligomerization of lipoylated DLAT, confirming that Cu2O and CMC induced cuproptosis, likely promoting the aggregation of lipoylated proteins. Additionally, Cu2O and CMC treatments reduced the levels of FDX1 and LIAS (Fig. S14), with the CMC treatment group showing a more pronounced decrease in FDX1 and LIAS levels compared to the Cu2O treatment group. Pyruvate, the starting substrate of the TCA cycle, reflects the efficiency of the TCA cycle [64]. As shown in Fig. 5d, the highest levels of pyruvate content can be observed in the CMC + US treatment group, demonstrating that copper ions affects components of the TCA cycle, inhibits the cycle and leads to pyruvate accumulation.

We then examined the morphological changes in mitochondria after copper ion uptake. Bio-TEM analysis showed significant disruption of mitochondrial structures in 4T1 cells treated with CMC (Fig. 5c). Compared to the control group (Fig. 5b), the CMC-treated 4T1 cells exhibited reduced inner mitochondrial membranes and large vacuoles, further confirming that 4T1 cells treated with CMC underwent cuproptosis. The JC-1 mitochondrial membrane potential staining assay was used to detect the disruptive effects of CMC on mitochondria. Following copper ion treatment, the Cu2O and CMC alone groups showed a reduction in red fluorescence signals and an elevation in green fluorescence signals (Fig. 5e). The increase in green fluorescence signal in the JC-1 assay for the CMC + US group was significantly higher than that of the Cu2O + US group (Fig. S13c). This phenomenon demonstrated that copper-induced cell death is related to mitochondrial metabolism and that US further promotes mitochondrial metabolism, clearly confirming that the preparation of CMC greatly enhances the synergistic effects of copper-induced cell death and SDT.

Fig. 6
figure 6

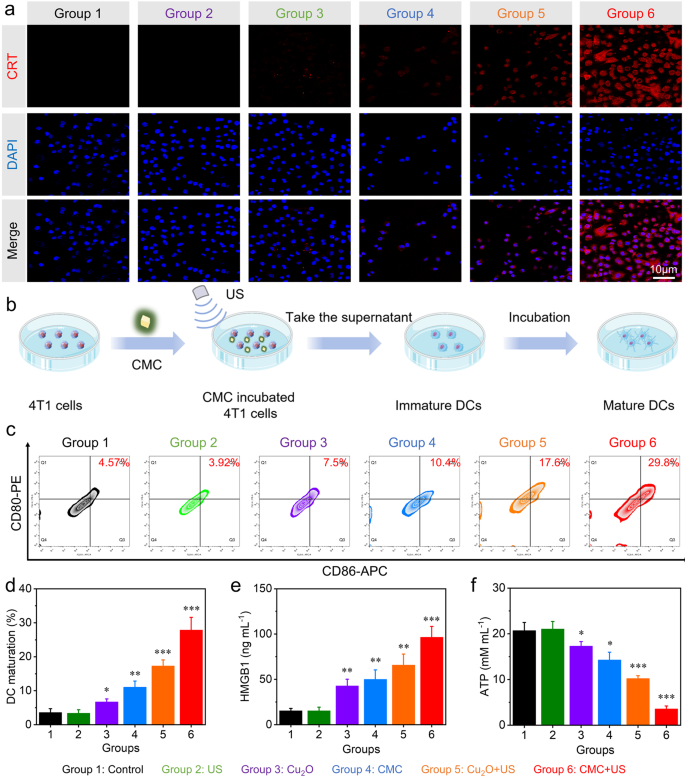

In vitro induction of ICD effects by CMC. (a) Confocal images of CRT exposure in 4T1 cells after different treatments. (b) Schematic diagram of the experimental process for CMC activation of DCs. (c, d) Flow cytometry analysis and corresponding quantitative results of CD80 and CD86 expression in DCs after different treatments. (e, f) Extracellular HMGB1 levels and Intracellular ATP levels in 4T1 cells after different treatments. (n = 3 and *p < 0.05, **p < 0.01, ***p < 0.001)

Full size image

In vitro induction of ICD effects by CMC

After demonstrating the effective in vitro therapeutic effects of CMC through ROS generation and cuproptosis effect, we further investigated the cell death pathways involved in the synergistic action of CDT, SDT and cuproptosis. ROS and cuproptosis have the ability to induce immunogenic cell death in tumor cells, leading to the presentation of CRT, the release of HMGB1 and ATP [65,66,67]. Dendritic cells can be recruited and activated by these three DAMPs, subsequently initiating an adaptive immune response to eliminate tumor cells [8, 68]. The strongest red fluorescence signal was observed in the CMC + US group compared to other groups (Fig. 6a), indicating that CRT was exposed from the endoplasmic reticulum to the cell surface after the synergistic action of CDT, SDT, and cuproptosis. Next, the highest concentration of HMGB1 was released by 4T1 cells treated with CMC + US (41.5 ± 5.3 µg/ml) compared with the other groups (Fig. 6e). The other groups followed in order: Cu2O + US (31.2 ± 4.5 µg/ml), CMC (25.5 ± 4.0 µg/ml), and Cu2O (20.5 ± 3.5 µg/ml). The control group and the US alone group showed little difference, with levels of 10.8 ± 1.3 µg/ml and 11.0 ± 1.3 µg/ml, respectively. To further confirm ROS- and cuproptosis-triggered ICD effect, we used an ATP assay kit to evaluate ATP release level in 4T1 cells after different treatments. Figure 6f shows that intracellular ATP levels decreased in the CMC + US group, indicating that CMC could secrete more ATP from the intracellular to the extracellular space under US irradiation. These above results strongly demonstrated that CMC can trigger ICD effect through the synergistic action of CDT, SDT, and cuproptosis. Tumor-associated antigens have the potential to activate DCs, which are an essential type of APCs [45, 69,70,71]. After adding the supernatant from 4T1 cells co-incubated with CMC (Fig. 6b), the expression levels of CD80 and CD86 on DCs cells were detected. As shown in Fig. 6c, d, CMC + US group exhibited the higher proportion of CD80+CD86+ DCs compared with the Cu2O + US group, suggesting that the construction of heterojunctions could enhance the sonodynamic and chemodynamic properties of Cu2O nanocubes to induce the stronger ICD effects.

Fig. 7
figure 7

In vivo antitumor efficacy of CMC. (a) In vitro anticancer therapy procedures of CMC are illustrated schematically. (b, c) In vivo and ex vivo NIR imaging of CMC. (d, e) Tumor growth curves of primary (d) and distant tumors (e) in different treatment groups of mice. (f) Survival rates of mice in different treatment groups. (g) H&E and TUNEL staining of primary tumors after different treatments. (n = 3 and ***p < 0.001)

Full size image

In vivo antitumor efficacy of CMC

Considering that the tumor-specific cuproptosis and ROS could induce antitumor immune responses by activating ICD effect, we then investigated the in vivo anticancer effects of CMC. Upon injecting ICG-labeled CMC intravenously, the tumor site exhibited prominent fluorescence signals (Fig. 7b and S15), indicating the gradual accumulation of CMC in the tumor tissue. Furthermore, the ex vivo NIR imaging results showed that CMC accumulation in the tumor tissue was highest 24 h after injection (Fig. 7c and S16). On this basis, US irradiation should be performed 24 h after intravenous injection of CMC.

Considering that treating the primary tumor can activate the immune system, we constructed a bilateral tumor model to evaluate whether CMC-mediated immunotherapy can inhibit the growth of distant tumors. During the treatment, neither the control group nor the US group showed significant inhibition of primary or distant tumor growth. In the Cu2O and CMC groups, tumor volume growth in both primary and distant tumors was reduced compared to the control or US groups (Fig. 7d, e), indicating that CMC-induced CDT and cuproptosis had a certain therapeutic effect within the TME. Compared to the Cu2O + US group, the CMC + US group exhibited greater inhibition of tumor growth, demonstrating enhanced synergistic therapeutic effects of CDT, SDT, and tumor-specific cuproptosis. In addition, it is worth noting that the primary tumors in the CMC + US group were completely eliminated within a mere 8 days, underscoring the formidable antitumor capabilities of CMC. The growth of distant tumors in CMC + US group was almost completely inhibited, which was superior to that in CMC alone group. Additionally, mice in the CMC + US group survived for 45 days, while mice in the control group survived only about 20 days (Fig. 7f). Histological analysis of primary and distant tumor tissues was performed using TUNEL and H&E staining to study the therapeutic effects of CMC-mediated CDT, SDT, and tumor-specific cuproptosis. Figure 7g and S17 show that the CMC + US group had the highest levels of apoptosis or necrosis in primary and distant tumor cells, indicating that CMC-enhanced CDT, SDT, and tumor-specific cuproptosis can induce severe apoptosis or necrosis. ROS staining also showed that CMC-mediated TME modulation and SDT had superior therapeutic effects. Fig. S18 showed that the CMC + US group had the highest levels of ROS in tumor, indicating that the effectiveness of CMC in therapy may be due to the production of a large amount of ROS in tumors.

Fig. 8
figure 8

In vivo immune response evaluation. (a) Tumors from different treatment groups were subjected to CRT staining. (b, c) After undergoing different treatments, the lymph nodes were analyzed using flow cytometry to determine the levels of CD80 and CD86 expression, yielding quantitative results. (d-f) Analysis of flow cytometry and quantitative assessment of CD4+ and CD8+ T cell expression in primary tumors of mice post various treatments. (n = 3 and *p < 0.05, **p < 0.01, ***p < 0.001)

Full size image

In vivo immune response evaluation

Apart from the ROS generation in tumor tissues, we then carefully investigated the in vivo therapeutic mechanism of combined CDT, SDT, and tumor-specific cuproptosis through CMC heterojunctions. Evaluating the levels of CRT, HMGB1, and ATP in tumor tissues was the initial step in assessing the ICD effects induced by CMC-mediated SDT/CDT and tumor-specific cuproptosis. The release levels of HMGB1 in each group were measured using ELISA assay. Fig. S19 shows that the CMC + US group had the highest concentration of released HMGB1, indicating that the combined SDT/CDT and cuproptosis effects induced a stronger ICD effect. Additionally, the ATP levels within tumors were highest in the CMC + US group compared to the other groups (Fig. S20). As depicted in Fig. 8a, the immunofluorescence staining images showed a significant increase in the green fluorescence signal of CRT in the CMC + US group as opposed to the other groups.

Next, we investigated the immune responses in both primary and distant tumors in order to understand how the treatment works. In Fig. 8b, it can be observed that the CMC + US group had a greater amount of CD80+CD86+ mature DCs than the CMC alone group. Specifically, the CMC + US group had the highest number of mature DCs, with a proportion of CD80+CD86+ DCs at 19.0 ± 3.0% (Fig. 8c). Next, we evaluated the activation of T cells in the spleen and tumors by CMC-mediated synergistic tumor therapy using flow cytometry. Following treatment with CMC and US irradiation, a higher number of CD4+CD8+ T cells were observed in spleen (Fig. S22), primary tumors (Fig. 8d-f), and distant tumors (Fig. S21). Finally, we assessed the biosafety of Cu2O and CMC and confirmed the protection effect of Cu-MOF coating. The histopathological testing and hematological analysis were used to evaluate the in vivo long-term toxicity of these treatments. The major organs of the CMC + US group in Fig. S24 showed no significant pathological abnormalities. All markers in the blood biochemistry and blood routine examination for the CMC + US group were within normal levels, suggesting that Cu ions were not released from CMC, as depicted in Fig. S25. We also performed the hemolysis experiments to further investigate the biosafety of CMC. At CMC concentrations as high as 320 µg/mL, red blood cell hemolysis is still not detected (Fig. S26), clearly proving the good biosafety of CMC.

Conclusion

In conclusion, our approach involves using Cu-MOF as a safeguarding layer to manage the biodegradation processes of Cu2O. By forming in-situ, the Cu-MOF effectively prevents the non-tumor-specific degradation of Cu2O nanocubes, ultimately shielding normal tissues from harm. Given the tumor-specific degradation of Cu2O nanocubes, the potential clinical translation of CMC heterojunctions can be highlighted for its advantages. Despite the inevitable accumulation of CMC in healthy tissues, the mere presence of Cu+ is insufficient to trigger chemodynamic and cuproptosis effects. This is due to the limited degradation of these heterojunctions occurring mainly in tumors. Second, CDT/cuproptosis can be exclusively activated in tumors because of the tumor-specific release of Cu+. Moreover, the depletion of GSH by Cu2+ causes a domino effect of ROS amplification. Ultimately, by increasing ROS levels and promoting efficient cuproptosis, the immunosuppressive tumor microenvironment can be reversed.

Data availability

Data is provided within the manuscript or supplementary information files.
